PSB-AP-09

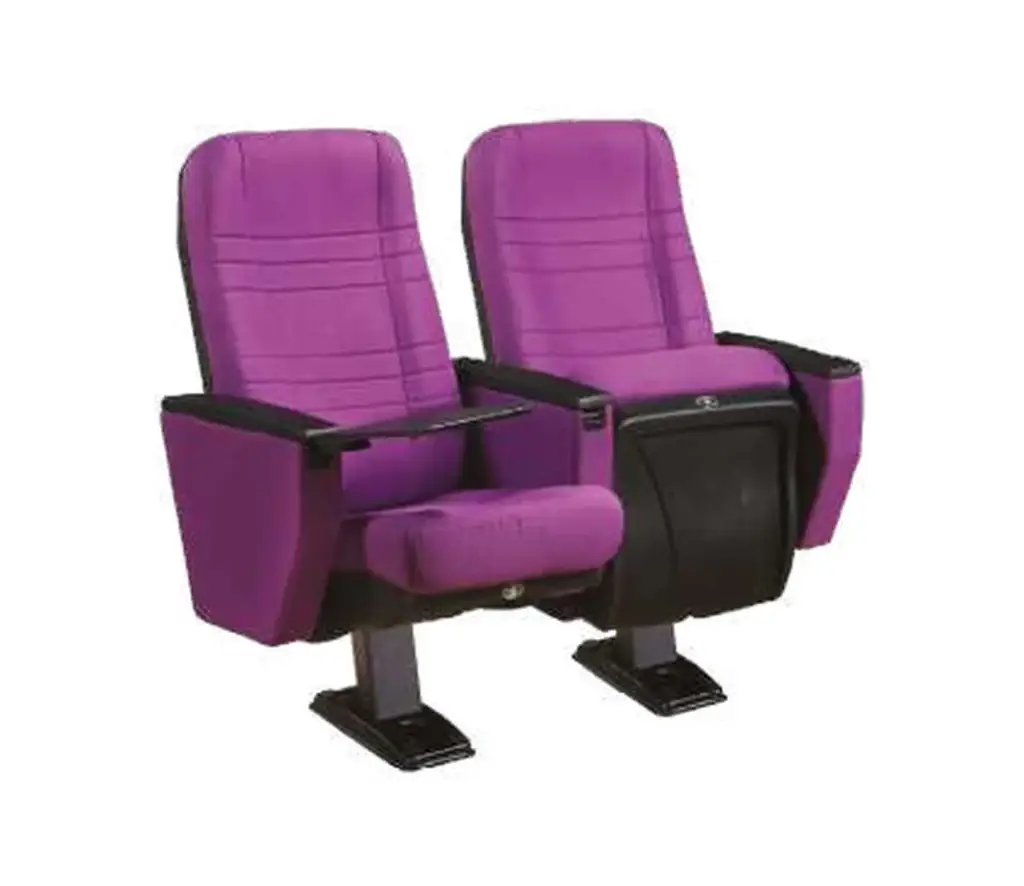

About PSB-AP-09
Moulded polyurethane foam upholstered in fabric, under high-impact polypropylene covers pigmented through and ultra-inhibited to retard fading. High-elasticity PU or polypropylene armrest, black moulded concealed ABS writing tablet, and a counter-weight mechanism that returns the seat to the vertical fold position. Also available on a single leg.
Enquire About This ModelWhat It Is Made Of
Specifications
Materials, mechanism and finish, as supplied. Ask us about fabric, colour and the options that can be fitted.
| BACKREST | Molded Polyurethane Foam Upholstered In Fabric |
|---|---|
| SEAT | Molded Polyurethane Foam Upholstered In Fabric |
| BACKREST & SEAT COVER | Made Of High Impact Polypropylene With Built-In Colour Pigment And Ultra Inhibitors To Retard Fading When Required |
| ARMREST | Made Of High-Elasticity PU Or Polypropylene |
| WRITING TABLET | Black Moulded Concealed Abs Writing Tablet |
| SEAT MECHANISM | Seat Shall Be Provided With A Counter Weight Mechanism Which Automatically Returns The Seat To Vertical Fold Position |
| OPTIONAL | PSB-AP-09 (Single Leg) |
Technical Data

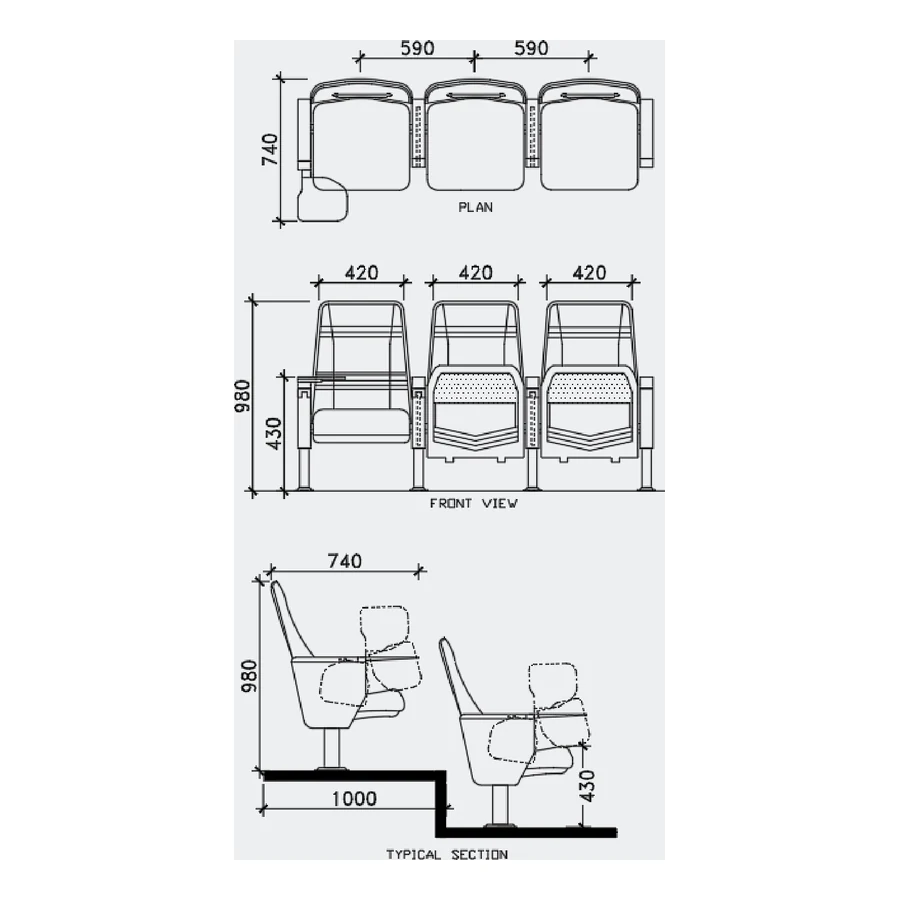

Dimensions
Plan, front and section views with centre-to-centre spacing. Every measurement is in millimetres.
