PSB-LP-04

Lecture Hall Seating

PSB-LP-04

About PSB-LP-04

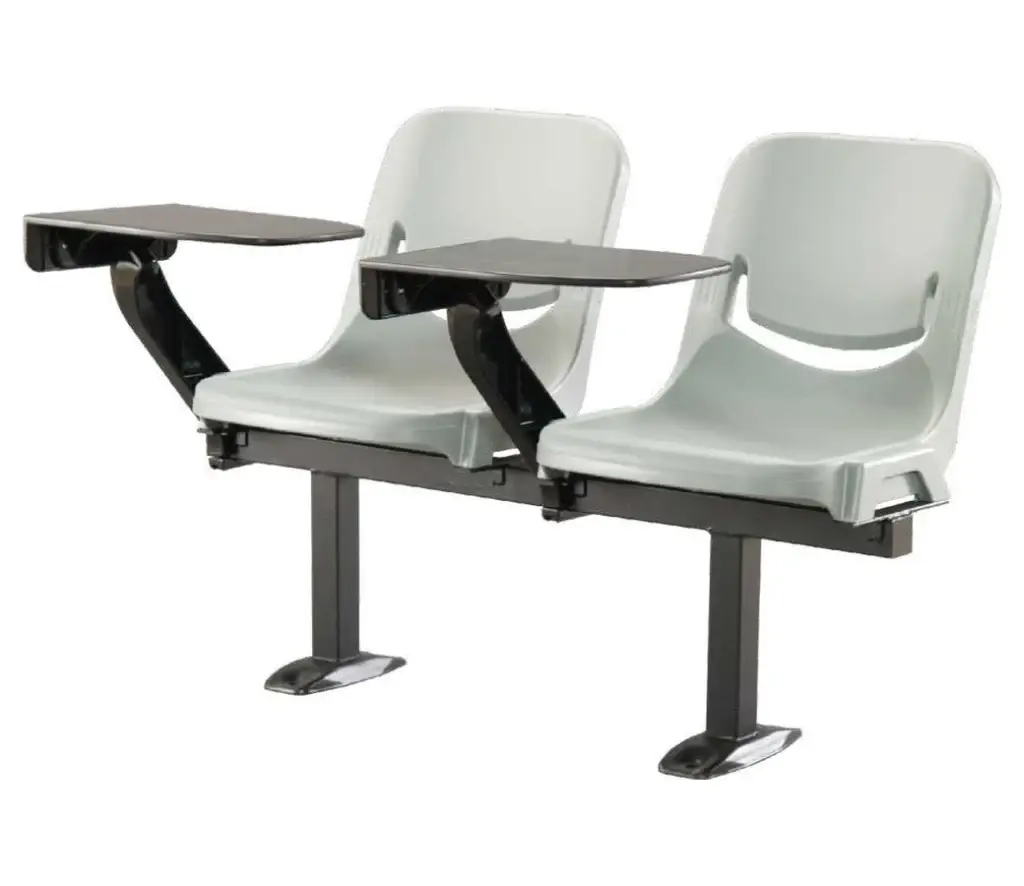

A high impact grade co-polymer polypropylene shell on a heavy duty PSB die-cast aluminium arm fitted to the chair frame, with a PSB ABS writing board in an Armolon finish and powder coated steel parts. Cushion padding is available.

Enquire About This Model

What It Is Made Of

Specifications

Materials, mechanism and finish, as supplied. Ask us about fabric, colour and the options that can be fitted.

SEAT SHELLMade Of High Impact Grade Of Co-Polymer Polypropylene Shell
WRITING TABLETPSB ABS Board With Armolon Finish
ALUMINIUM ARMMade Of Heavy Duty PSB Die Cast Aluminum Fitted To The Chair Frame
FINISH OF STEEL PARTSPowder Coating
OPTIONALCushion Padded

Technical Data

Dimensions

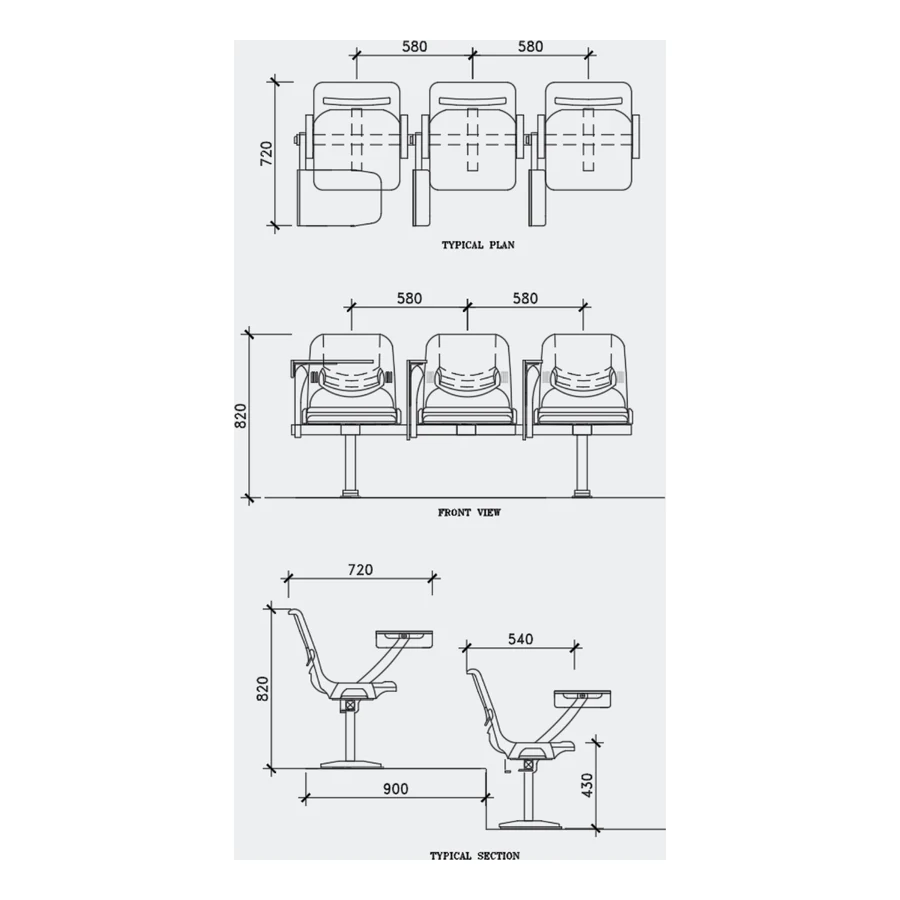

Plan, front and section views with centre-to-centre spacing. Every measurement is in millimetres.

PSB-LP-04 technical drawing
