PSB-PB-E10 (Bleacher)
PSB-PB-E1 (Bleacher)

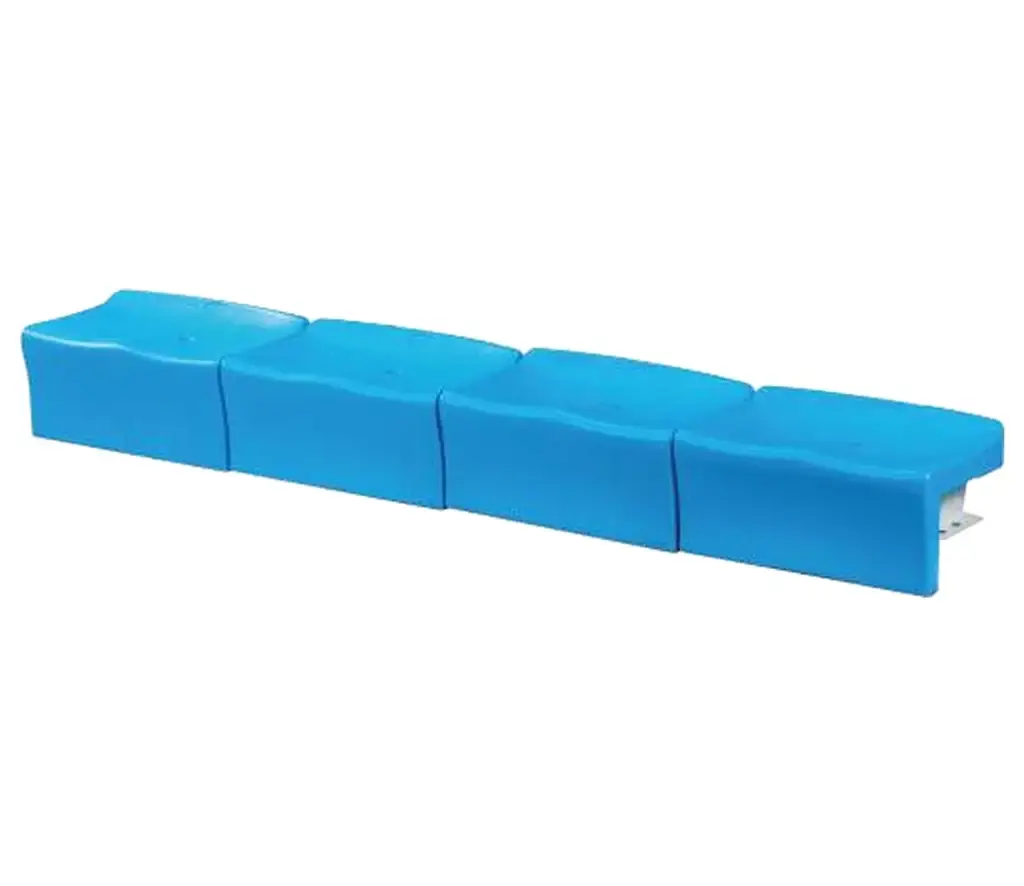

About PSB-PB-E1 (Bleacher)
A high density polyethylene blow mould bucket shell on 50 x 40 x 2.1mm rectangular steel pipe with a steel plate bracket, at 470mm centre to centre of seat. Steel parts are powder coated or hot dip galvanised.
Enquire About This ModelWhat It Is Made Of
Specifications
Materials, mechanism and finish, as supplied. Ask us about fabric, colour and the options that can be fitted.
| POLYETHYLENE SHELL | High Density Polyethylene Blow Mold Bucket Shell |
|---|---|
| HORIZONTAL BAR & LEG | Rectangular Steel Pipe (50 X 40 X 2.1mmt) |
| BRACKET | Steel Plate |
| FINISH OF STEEL PARTS | Powder Coating Or Hot Dip Galvanizing Coating |
| AVAILABLE CENTRE TO CENTRE OF SEAT | 470mm |
Technical Data

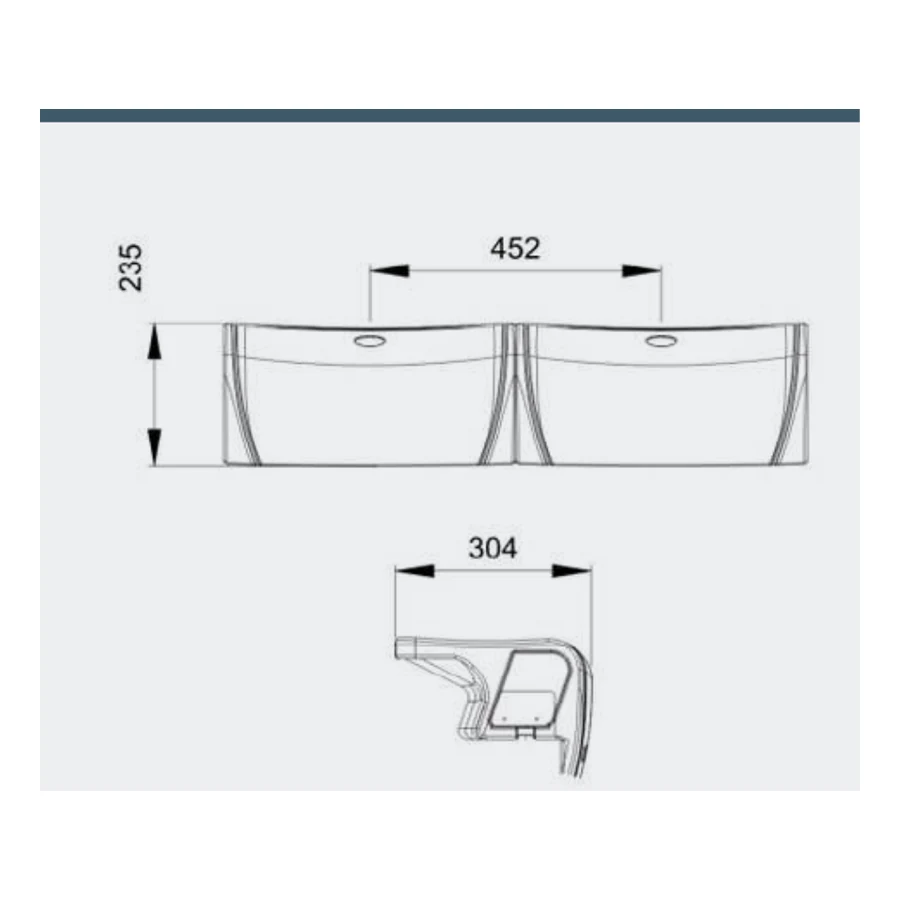

Dimensions
Plan, front and section views with centre-to-centre spacing. Every measurement is in millimetres.
